HIKMICRO CONDOR LRF CQ35 5GHZ WIFI

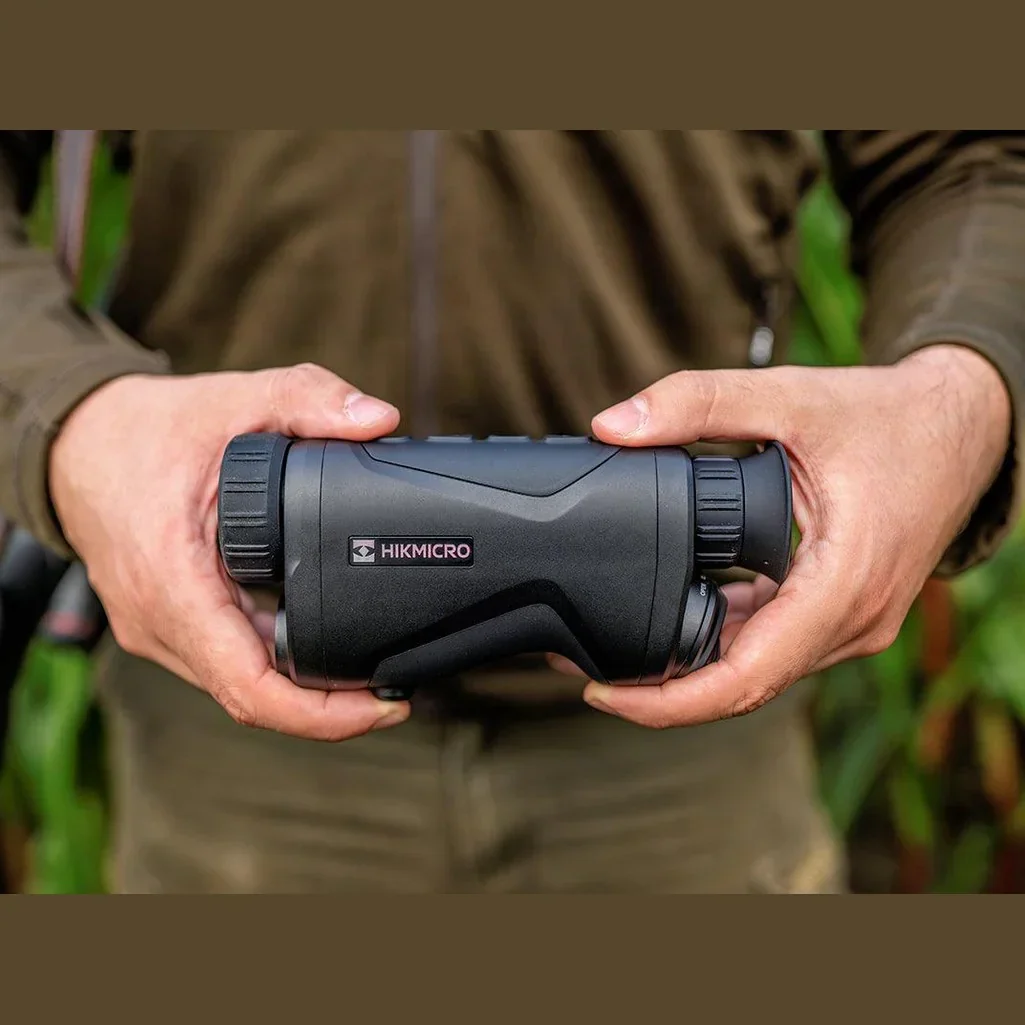

Introducing the HIKMICRO Condor LRF: Enhanced Imaging with Laser Range Finder
Discover the latest innovation from HIKMICRO - the Condor LRF. Building on the ergonomic design of the popular Gryphon units, the Condor features the new <20mK NETD sensor found in the Falcon and Thunder units, now in a monocular form factor with a 1000m laser range finder, accurate to +-1m.
Powerful Imaging in a Compact Form
Experience powerful imaging in a rugged yet compact form factor. The Condor LRF boasts the same IP67 rating as other HIKMICRO products, with the added durability of a magnesium alloy housing found in Falcon units. Despite its toughness, it remains lightweight and compact at just 400g and 185mm long, fitting easily into your pack or pocket.
Key Features:
- High sensitivity thermal module with NETD < 20 mK
- 640 × 512 resolution with 12 μm detector
- 1024 × 768 resolution 0.39-inch OLED display
- Advanced image processing technology for enhanced detail recognition
- Zoom Pro for digital zooming without loss of picture quality
- Replaceable and rechargeable Li-ion battery for up to 4 hours of continuous operation
- Lightweight at 450g with a compact and ergonomic design
Â
|
Thermal Module |
|
|
Image Sensor |
VOx Uncooled Focal Plane Arrays |
|
Max. Resolution |
640 × 512 |
|
Frame Rate |
50 Hz |
|
Pixel Interval |
12 μm |
|
Response Waveband |
8 μm to 14 μm |
|
NETD |
Less than 20 mK (@25°C), F# = 1.0 |
|
Lens (Focal Length) |
50 mm, f1.0 |
|
Focus Mode |
Focus Ring |
|
Detection Range |
1800 m |
|
Min. Focusing Distance |
5 m |
|
Magnification |
1.8x |
|
Field of View(H × V), Degrees / m @100 m |
8.7° × 7.0°/15.2 m × 12.2 m@100 m |
|
Image Display |
|
|
Display |
1024 × 768, 0.39 inch, OLED |
|
Palettes |
Black Hot, White Hot, Red Hot, Fusion |
|
FFC (Flat Field Correction) Mode |
Auto, Manual, External Correction |
|
Exit Pupil |
4 mm |
|
Eye Relief |
15 mm |
|
Diopter (Range) |
-5 D to +3 D |
|
Brightness Adjustment |
Yes |
|
Tone Adjustment |
Cold, Warm |
|
Contrast Adjustment |
Yes |
|
Image Pro |
Yes |
|
Zoom Pro |
Yes |
|
System |
|
|
Record Video |
Yes |
|
Capture Snapshot |
Yes |
|
Audio Recording |
Yes |
|
Standby Mode |
Yes |
|
Storage |
Yes |
|
PIP |
Yes |
|
Hotspot |
Yes |
|
Hot Track |
Yes |
|
Distance Measurement |
Yes |
|
Power Supply |
|
|
Battery Type |
Replaceable and Rechargeable Li-ion Battery |
|
Battery Operating Time |
4-hour continuous running with CVBS and hotspot function off (@25°C) |
|
Type-C Power Supply |
5 VDC, 2 A |
|
General |
|
|
Protection Level |
IP67 |
|
Dimension |
197.1 mm × 60 mm × 94.9 mm (7.76" × 2.36" × 3.74") |
|
Weight |
450 g without battery |
|
Working Temperature |
-30°C to +55°C |
|
Laser Rangefinder |
|
|
Safety Class for Laser |
Class 1 |
|
Wavelength |
905 nm |
|
Max. Measuring Range |
1000 m |
|
Measurement Accuracy |
± 1 m |
|
 Min. Measuring Range |
10 m |
