Introducing the HIKMICRO Condor LRF: Enhanced Imaging with Laser Range Finder

Discover the latest innovation from HIKMICRO - the Condor LRF. Building on the ergonomic design of the popular Gryphon units, the Condor features the new <20mK NETD sensor found in the Falcon and Thunder units, now in a monocular form factor with a 1000m laser range finder, accurate to +-1m.

Powerful Imaging in a Compact Form

Experience powerful imaging in a rugged yet compact form factor. The Condor LRF boasts the same IP67 rating as other HIKMICRO products, with the added durability of a magnesium alloy housing found in Falcon units. Despite its toughness, it remains lightweight and compact at just 400g and 185mm long, fitting easily into your pack or pocket.

Key Features:

High sensitivity thermal module with NETD < 20 mK
640 × 512 resolution with 12 μm detector
1024 × 768 resolution 0.39-inch OLED display
Advanced image processing technology for enhanced detail recognition
Zoom Pro for digital zooming without loss of picture quality
Replaceable and rechargeable Li-ion battery for up to 4 hours of continuous operation
Lightweight at 450g with a compact and ergonomic design

Specification

Thermal Module
Image Sensor	VOx Uncooled Focal Plane Arrays
Max. Resolution	640 × 512
Frame Rate	50 Hz
Pixel Interval	12 μm
Response Waveband	8 μm to 14 μm
NETD	Less than 20 mK (@25°C), F# = 1.0
Lens (Focal Length)	50 mm, f1.0
Focus Mode	Focus Ring
Detection Range	1800 m
Min. Focusing Distance	5 m
Magnification	1.8x
Field of View(H × V), Degrees / m @100 m	8.7° × 7.0°/15.2 m × 12.2 m@100 m
Image Display
Display	1024 × 768, 0.39 inch, OLED
Palettes	Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode	Auto, Manual, External Correction
Exit Pupil	4 mm
Eye Relief	15 mm
Diopter (Range)	-5 D to +3 D
Brightness Adjustment	Yes
Tone Adjustment	Cold, Warm
Contrast Adjustment	Yes
Image Pro	Yes
Zoom Pro	Yes
System
Record Video	Yes
Capture Snapshot	Yes
Audio Recording	Yes
Standby Mode	Yes
Storage	Yes
PIP	Yes
Hotspot	Yes
Hot Track	Yes
Distance Measurement	Yes
Power Supply
Battery Type	Replaceable and Rechargeable Li-ion Battery
Battery Operating Time	4-hour continuous running with CVBS and hotspot function off (@25°C)
Type-C Power Supply	5 VDC, 2 A Supports External Power Supply
General
Protection Level	IP67
Dimension	197.1 mm × 60 mm × 94.9 mm (7.76" × 2.36" × 3.74")
Weight	450 g without battery
Working Temperature	-30°C to +55°C
Laser Rangefinder
Safety Class for Laser	Class 1
Wavelength	905 nm
Max. Measuring Range	1000 m
Measurement Accuracy	± 1 m
Min. Measuring Range	10 m

HOT Selling Monoculars

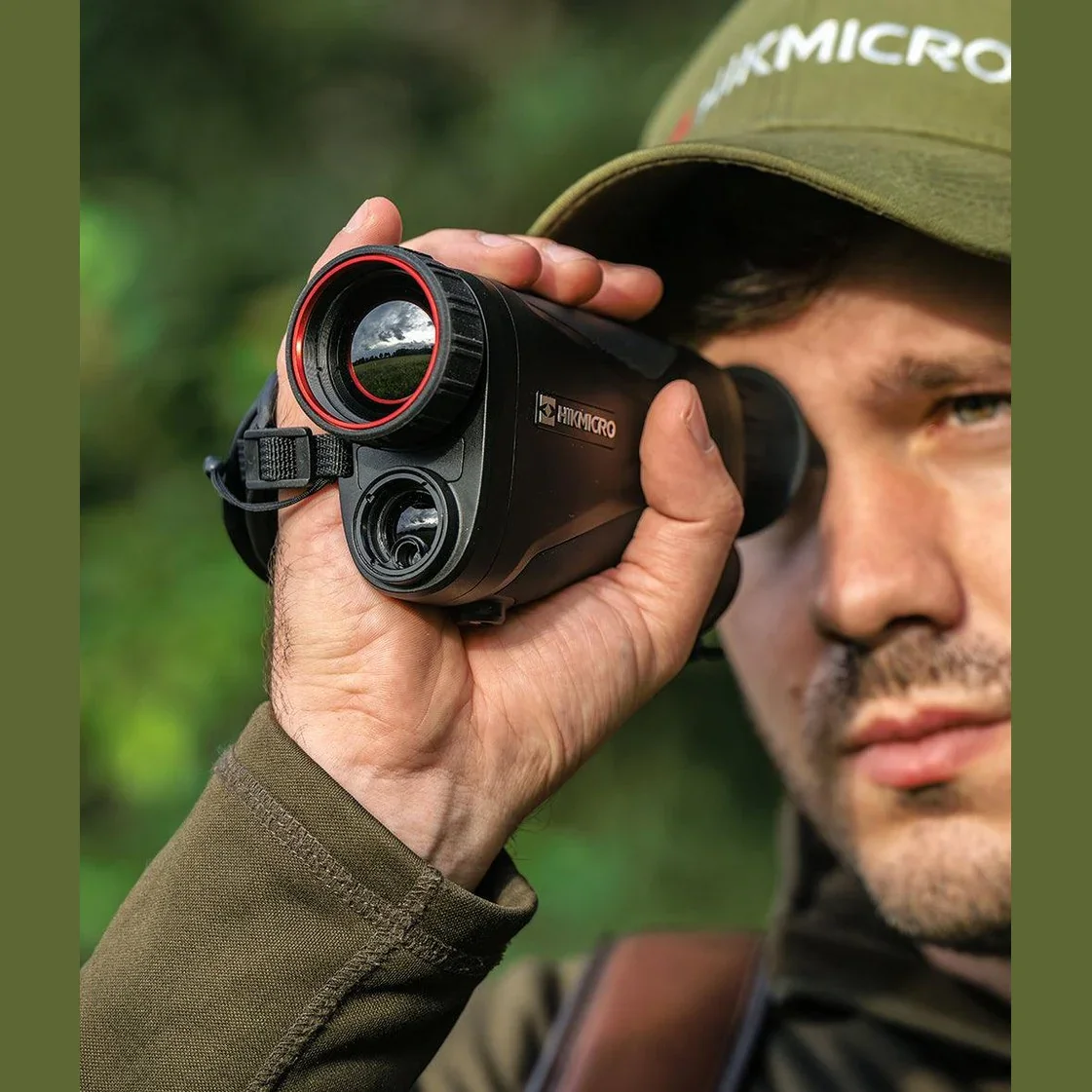

HIKMICRO CONDOR LRF CQ35 5GHZ WIFI

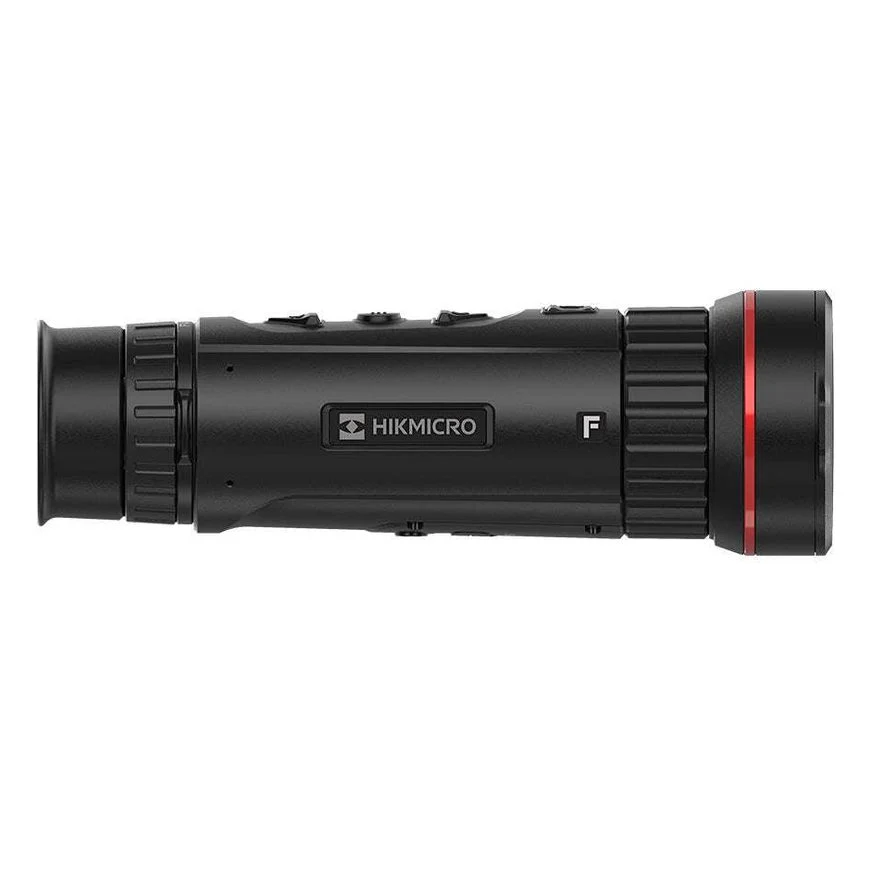

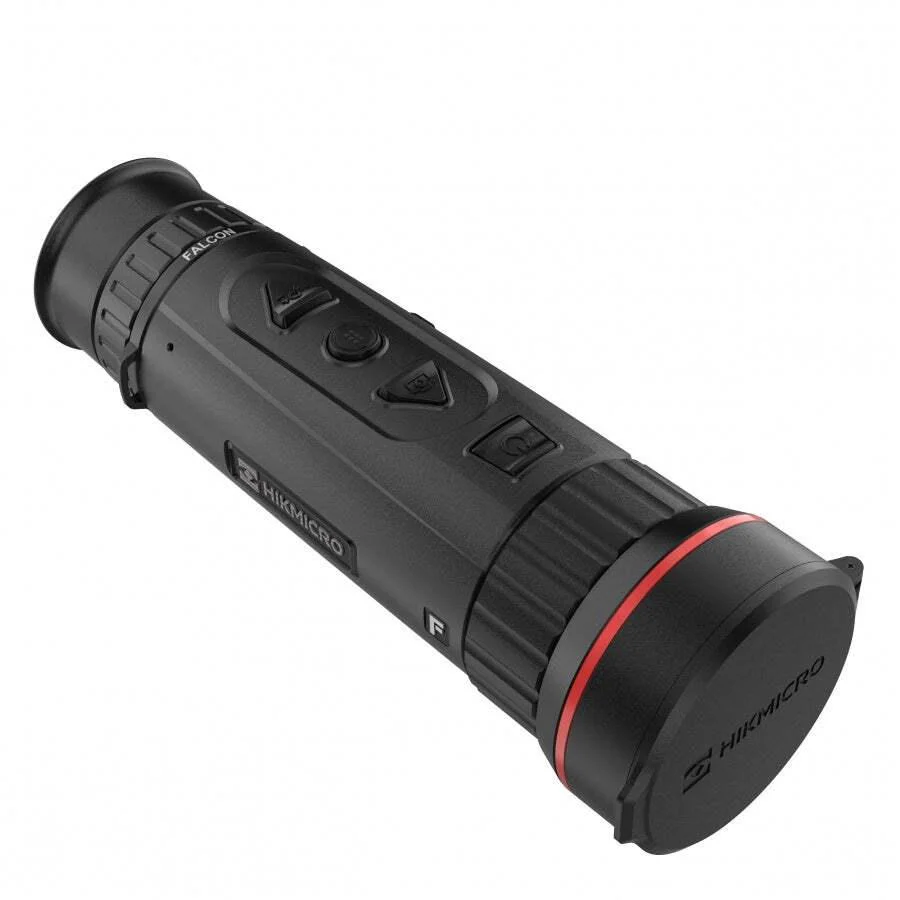

HIKMICRO FALCON FQ50 THERMAL MONOCULAR
